LLDP support
Link Layer Discovery Protocol (LLDP) is a channel-layer protocol that allows network equipment to notify other devices on a local network of its existence and transmit its identity and capabilities to them, as well as receive the same information from them. The protocol is described in the IEEE 802.1AB standard.

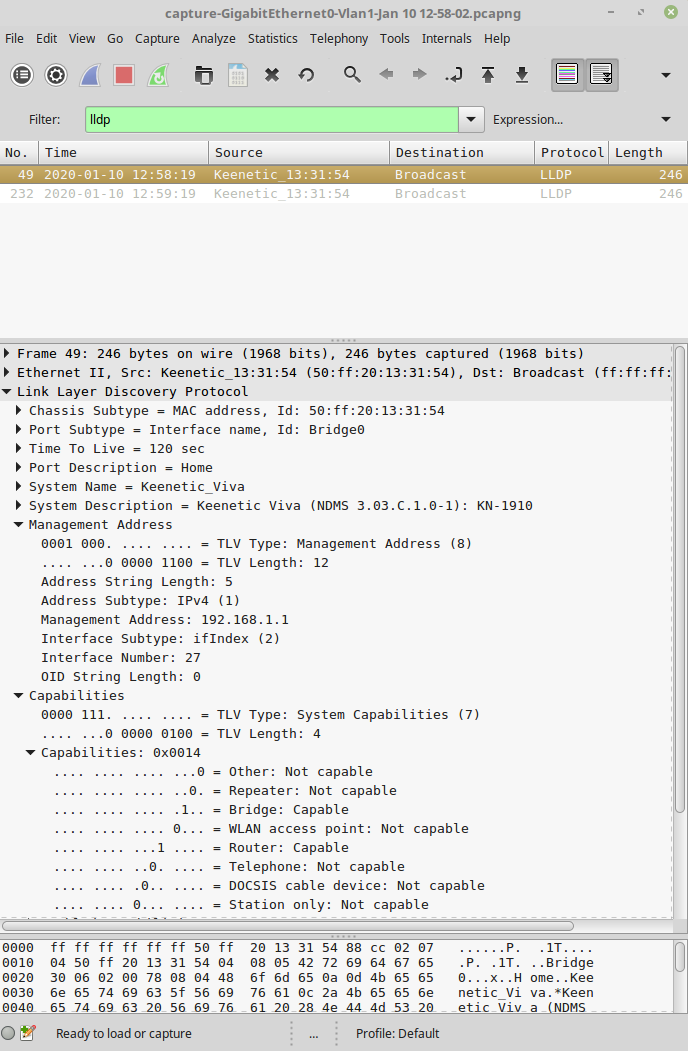

Keenetic routers support the LLDP agent, i.e. the router informs other devices on the network about itself. For example:
As we can see, this information includes the MAC address, system name, model name, built-in operating system version, local IP address, operating mode, etc.
Önemli
The LLDP agent is enabled by default on private interfaces and disabled on public and protected interfaces.
However, a router does not support collecting information about neighbours through the LLDP protocol. This task can be partially solved by executing the following commands in the command-line interface (CLI):
show ip hotspot
and
show ip neighbour
The show ip hotspot command displays a list of hosts connected to the hotspot. The show ip neighbour command displays a list of entries about neighbouring hosts.
Complete information about command syntax is available in the Command Reference Guide, which can be found on our website in the Download Center.
For example:
(config)> show ip hotspot
host:
mac: 78:ab:bb:fc:65:25
via: 78:ab:bb:fc:65:25
ip: 192.168.1.102
hostname:
name: SMART TV
interface:
id: Bridge0
name: Home
description: Home network
expires: 42791
registered: yes
access: permit
schedule:
active: yes
rxbytes: 2953948
txbytes: 224927
uptime: 57
first-seen: 7167
last-seen: 0
link: up
auto-negotiation: yes
speed: 100
duplex: yes
ever-seen: yes
traffic-shape:
rx: 0
tx: 0
mode: mac
schedule:
dns-filter:
engine: public
profile: adguard-default
host:
mac: dc:72:9b:36:f7:df
via: dc:72:9b:36:f7:df
ip: 192.168.1.72
hostname: DLI-TL20
name: DLI-TL20
interface:
id: Bridge0
name: Home
description: Home network
expires: 0
registered: yes
access: permit
schedule:
active: yes
rxbytes: 213767
txbytes: 87215
first-seen: 6537
last-seen: 0
link: up
ssid: Keenetic-6106
ap: WifiMaster0/AccessPoint0
authenticated: yes
txrate: 135
uptime: 35
ht: 40
mode: 11n
gi: 800
rssi: -49
mcs: 7
txss: 1
_11: k
_11: v
ever-seen: yes
traffic-shape:
rx: 0
tx: 0
mode: mac
schedule:
dns-filter:
engine: public
profile: adguard-default
host:
mac: ac:9e:17:4e:32:0e
via: ac:9e:17:4e:32:0e
ip: 192.168.1.143
hostname: PC
name: PC
interface:
id: Bridge0
name: Home
description: Home network
expires: 0
registered: yes
access: permit
schedule:
active: yes
rxbytes: 1459358817
txbytes: 55243732
uptime: 17606
first-seen: 17607
last-seen: 0
link: up
auto-negotiation: yes
speed: 1000
duplex: yes
ever-seen: yes
traffic-shape:
rx: 0
tx: 0
mode: mac
schedule:
dns-filter:
engine: public
profile: adguard-default
host:
mac: 44:59:e3:7b:c3:45
via: 44:59:e3:7b:c3:45
ip: 192.168.1.54
hostname: Honor_10
name:
interface:
id: Bridge0
name: Home
description: Home network
expires: 42591
registered: yes
access: permit
schedule:
active: yes
rxbytes: 383794
txbytes: 102869
first-seen: 14116
last-seen: 2
link: up
ssid: Keenetic-6106
ap: WifiMaster0/AccessPoint0
authenticated: yes
txrate: 108
uptime: 570
ht: 40
mode: 11n
gi: 800
rssi: -71
mcs: 5
txss: 1
_11: k
ever-seen: yes
traffic-shape:
rx: 20000
tx: 20000
mode: mac
schedule:
dns-filter:
engine: public
profile: adguard-default
host:
mac: 14:16:9e:01:ba:f3
via: 14:16:9e:01:ba:f3
ip: 0.0.0.0
hostname:
name: MEIZU-M6
registered: yes
access: permit
schedule:
active: no
rxbytes: 0
txbytes: 0
uptime: 0
link: down
ever-seen: no
traffic-shape:
rx: 0
tx: 0
mode: mac
schedule:
dns-filter:
engine: public
profile: adguard-default(config)> show ip neighbour
neighbour:
id: 1
via: ac:9e:17:4e:32:0e
mac: ac:9e:17:4e:32:0e
address-family: ipv4
address: 192.168.1.143
interface: Bridge0
first-seen: 17846
last-seen: 2
leasetime: 7863
expired: no
wireless: no
neighbour:
id: 2
via: 44:59:e3:7b:c3:45
mac: 44:59:e3:7b:c3:45
address-family: ipv4
address: 192.168.1.54
interface: Bridge0
first-seen: 14011
last-seen: 2
leasetime: 494
expired: no
wireless: yes
neighbour:
id: 3
via: 78:ab:bb:fc:65:25
mac: 78:ab:bb:fc:65:25
address-family: ipv4
address: 192.168.1.102
interface: Bridge0
first-seen: 7407
last-seen: 68
leasetime: 295
expired: yes
wireless: no
neighbour:
id: 4
via: dc:72:9b:36:f7:df
mac: dc:72:9b:36:f7:df
address-family: ipv4
address: 192.168.1.72
interface: Bridge0
first-seen: 6776
last-seen: 2
leasetime: 274
expired: no
wireless: yesIf necessary, LLDP can be disabled on any interface using the command:
interface {name} lldp disableFor instance:
(config)> interface ISP lldp disable
